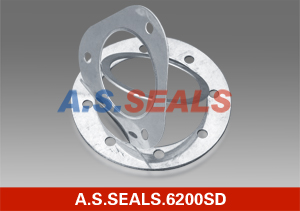

Stamping double jacketed gasket
Stamping double jacketed gasket
Item: A.S.SEALS.6200SD
Description: 1.Stamping double jacketed gasket is made of whole machined flat metallic plate with waved or corrugated surface. Without welding.
2.Filled with flexible graphite, PTFE, Ceramic, ASB, Non-asb. etc.
3.Normally used as flange sealing in large diameter pressure vessels, such as heat exchanger and reactor. Prefect stability.
4.Scope of application: working temp.: 450℃ (According to the kinds of coating materials); working pressure: 6.4 Mpa; gasket coefficient: 3.75; Max. size:2800mm.
5.The thickness of the jacketed metal is 0.4mm (Normally)
Send Inquiry Now! Live Chat Now!

Specification:
Selectable Materials:
 Metal materials  Din Material No.  Hardness HB Temperature oC  Density g/cm3
 CS/Soft Iron  1.1003/1.0038  90~120  -60~+500  7.85
 SS304, SS304L  1.4301/1.4306  130~180  -250~+550  7.93
 SS316, SS316L  1.4401/1.4404  130~180  -250~+550  7.98
 Copper  2.0090  50~80  -250~+400  8.9
 Aluminum  3.0255  20~30  -250~+300  2.73
Other special metal, Ti, Monel,etc. Are also available on request
Applicable Standard:
EN1514-4, ANSI B 16.21, ANSI B 16.5 standards, special size please request and provide drawing
