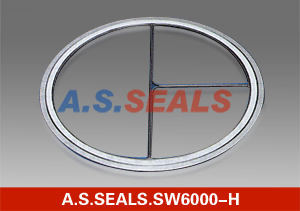

Spiral wound gasket used for heat exchanger

Item: A.S.SEALS.SW6000-H

Description: 1.SW6000-H spiral wound gasket where pass bars required. The outer portion is of standard spiral wound construction, the rib partition is normally of single or double jacketed style.
2.Prevents damage to the gaskets bore and inner winding, acts as a heat and corrosion barrier
3.Heat exchanger with flat face or raised face flanges should utilize style CG and CGI spiral wound gaskets.
4.It is customary to select inner ring materials to be the same as the metal winding.

Specification:

Selectable Materials:

Strip (Hoop) and the inner and outer ring profile		Filler			General thickness / mm
Name	Code	Name	Code	Appropriate Temp.^oC	V-shape gasket/Ring	W-shape gasket/Ring
Carbon Steel	CS	Graphite	FG	650
Stainless steel	304(L), 316(L)	Asbestos	ASB	500
Monel	Mon	PTFE	PTFE	250		4.8/3.0
Ni, Ti	Ni, Ti	Mica	MICA	950	3.2/2,0	5.5/4.0
Inconel	INC	Ceramic	CER	1000	4.5/3.0	7.5/5.0
Hastelloy, Zr	HAST, ZIRC	Non-asb	NAF	300

Color cord according to ASME B 16.20 on request.

Writing methods:
D1*D2*D3*D4
D1: Inner diameter of the inner ring
D2: Outer diameter of the inner ring
D3: Inner diameter of the outer ring
D3: Inner diameter of the outer ring
T: Thickness of the gasket, the default thickness is 0.125" (3.2mm). 0.175" (4.5mm)
Applicable Standards:
Normally manufacture SW6000-H ,Please provide the drawing.
ANSI B 16.20, MSS SP-44, API 605, DIN, JIS, JPI, BS 1560, JG/T, GB/T, HG, SH,etc.
Or the designated in detail by clients.
