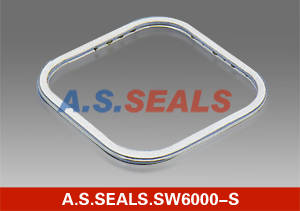

Spiral wound gasket in special styles
Spiral wound gasket in special styles
Item: A.S.SEALS.SW6000-S
Description: To suit for special flanges and request. We manufacture and provide various of special style SWG gaskets
Send Inquiry Now! Live Chat Now!

Specification:
 Style code  Explanations
 SW6000-Oval  Oval SWG fro oval flanges
 SW6000-CR  SWG gasket consists of two spiral wound gaskets
 SW6000-RTC  SWG very thin thickness for high pressures.
 SW6000-CGIF4  CGI SWG with PTFE inner ring for food processing
Selectable Materials:
Strip (Hoop) and the inner and outer ring profile Filler General thickness / mm
Name Code Name Code Appropriate Temp.oC V-shape gasket/Ring W-shape gasket/Ring
Carbon Steel CS Graphite FG 650
Stainless steel 304(L), 316(L) Asbestos ASB 500
Monel Mon PTFE PTFE 250   4.8/3.0
Ni, Ti Ni, Ti Mica MICA 950 3.2/2,0 5.5/4.0
Inconel INC Ceramic CER 1000 4.5/3.0 7.5/5.0
Hastelloy, Zr HAST, ZIRC Non-asb NAF 300
Color cord according to ASME B 16.20 on request.
