Serrated Gasket basic style
Serrated Gasket basic style

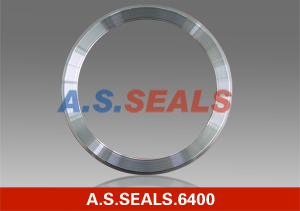

Item: A.S.SEALS.6400
Description: 1.6400 Kammprofile gasket is made of solid core, covering by soft materials. Convex root core compensates for flange weakness and counteracts flange rotation.
2.Serrations concentrate bolt load on small area for tight seals at lower stress,under compression, fills seating surface imperfections to form a tight, metal-to-metal connection. Withstands extreme fluctuations in temperatures and pressures.
3.Rigid core provides exceptional stability, even in large sizes, and facititates handing and installation.
Send Inquiry Now! Live Chat Now!

Specification:
Selection materials:
 Materials for metal and corrugated metal gaskets
 Material  ASTM  DIN Material No.
 Low CS  Soft Iron  1.1003
 Stainless steel  AISI 304  1.4301
 Stainless steel  AISI 316  1.4401
 Stainless steel  AISI 321  1.4541
 Stainless steel  AISI 316Ti  1.4571

Thicknesses:
 Core thickness    Compressed thickness
 Inches  mm  Inches  mm
 0.093  2.36  0.095~0.105  2.41~2.67
 0.125  3.18  0.128~0.138  3.25~3.51
 0.187  4.75  0.190~0.200  4.83~5.08
 0.250  6.35  0.253~0.263  6.43~6.68
 0.375  9.53  0.378~0.388  9.60~9.86
 0.500  12.70  0.503~0.513  12.78~13.03

Based on a flexible graphite sealing element.
