Ring joint gasket oval style

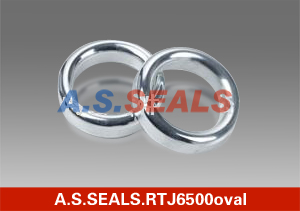

Item: A.S.SEALS.RTJ6500oval

Description: 1.RTJ6500oval gasket is manufactured according to the API 6A and ASME B 16.20 standard. CNC machined the oval shape.
2.designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape.
3.The small sealing area with high contact pressure results in great reliability. The contact surfaces of the gaskets and flange should be carefully processed.

Specification:

Standard materials:

Standard materials recommended by the ANSI B 16.20
ASTM	DIN Material No.	Maximum HB	Maximum HV	Materials code
Soft Iron	1.1003	90	56	D
Low CS	1.0038	120	68	S
4-6Cr1/2Mo	1.7362	130	72	F5
AISI 410	1.4000	170	86	S 410
AISI 304	1.4301	160	83	S 304
AISI 316	1.4401	160	83	S 316
AISI 347	1.4550	160	83	S347
Other special materials, Nickel, Monel, C276, etc , please request.

Dimension:

Standard for ring joint gaskets used with flanges
Ring Joint gaskets style	Ring joint gaskets standard	Flange standard
R	ASME B 16.20 , API 6A	ANSI B 16.5, ANSI B 16.47 Series A
RX	ASME B 16.20, API 6A	API 6B
BX	API 6A	API 6 BX

Order Example:
Ring-Joint gasket RTJ6500oval, R-30, special sizes requested,please provide the exactly drawings.
