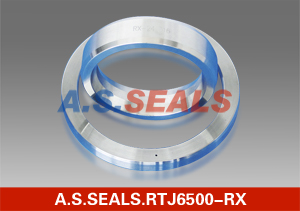

Ring joint gasket RX style
Ring joint gasket RX style
Item: A.S.SEALS.RTJ6500-RX
Description: 1.RTJ6500-RX gasket is manufactured according to the API 6A and ASME B 16.20 standard.
2.Designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape.
3.The RX Gaskets for pressures up to 15000 Psi
4.Gaskets that have been torqued initiating a metal-to-metal seal should be discarded and not reused.
Send Inquiry Now! Live Chat Now!

Specification:
Standard materials:
Standard materials recommended by the ANSI B 16.20
ASTM DIN Material No. Maximum HB Maximum HV Materials code
Soft Iron 1.1003 90 56 D
Low CS 1.0038 120 68 S
4-6Cr1/2Mo 1.7362 130 72 F5
AISI 410 1.4000 170 86 S 410
AISI 304 1.4301 160 83 S 304
AISI 316 1.4401 160 83 S 316
AISI 347 1.4550 160 83 S347
 Other special materials, Nickel, Monel, C276, etc , please request.

Dimension:
Standard for ring joint gaskets used with flanges
Ring Joint gaskets style Ring joint gaskets standard Flange standard
R ASME B 16.20 , API 6A ANSI B 16.5, ANSI B 16.47 Series A
RX ASME B 16.20, API 6A API 6B
BX API 6A API 6 BX

Order Example:
Ring-Joint gasket RTJ6500, RX-**, special sizes requested,please provide the exactly drawings.
