Pure graphite gasket

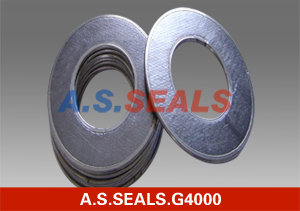

Pure graphite gasket
Item: A.S.SEALS.G4000
Description: 1.Pure graphite gasket is made of pure graphite sheet, without reinforced metal inside.
2.Compressibility: 30%
Recovery: >10%
Pressure: 40bar
Density 0.7/1.0g/cm3
Temperature: -240~550 oC
PH: 0~14
3.Various shapes are available, used in petrochemical, mining, vessels, boilers, piping and duct, pumps and values, flange etc. Suitable for steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.
Send Inquiry Now! Live Chat Now!

Specification:
Selectable Materials:
 Item  Tolerance of density  C >% Tensile strength  Sulphur content  Chlorine content  Stress relaxation  Ignition loss
 Industrial  +/-0.06g/cm3  98  4Mpa  <1000ppm  <50ppm  10%  2.0<%
 Nuclear  +/-0.05g/cm3  99.5  5Mpa  <700ppm  <35ppm  10%  0.5<%
