Non asbestos gasket

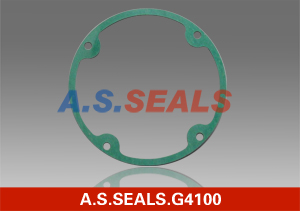

Item: A.S.SEALS.G4100

Description: 1. A.S.Seals Non-Asbestos gaskets are die cut or circle cut from compressed Non-asbestos jointing which are manufactured carefully selected chrysolite fiber intimately blended with suitable heat resistant binders etc. And volcanised into sheets of homogenous compositions and uniform thickness
2. Non-Asbestos gasket seal is effected by yielding or flow of materials into the imperfections of joint contact faces.
3. In this way gasket provides an unbroken barrier of homogenous structure through which no pathway exist for excape of confined media
4. Non-Asbestos made of special non-asbestos heat-resisting fiber, heat-resisting packing material, and special rubber compound heating and compression molding it.

Specification:

Properties & Application:

Item	Style
Item	G4100	G4102	G4104
Tensile strength Mpa	6	9	12.5
Aging coefficient	0.9	0.9	0.9
Stess relaxation %	45	45	45
Compressibility %	12+/-5	12+/-5	12+/-5
Recovery	40	45	45
Density g/cm3	1.8~2.0
T.Max oC	200	300	400
P.Max Mpa	1.5	3.0	5.0
Resistance to media	Water, seawater, steam, diluted acid & alkali, gases, alcohole, salt solutions etc. Under temperature and pressure

Above pressure and temperature only for your reference, more specifications, please see out data sheets or contact with our engineers/
Other style non-asbestos gaskets:
1.Oil resisting non-asbestos gaskets: G4110,4112,4114.
Dimension:
ASME B 16.21, DIN2690, And any sizes or special shapes according to your requirements
Order example:
G4100, ASME B 16.21, RF, 2.0
Note: FF flange gaskets normal with holes. Please provide the diameter and quantity of holes.
