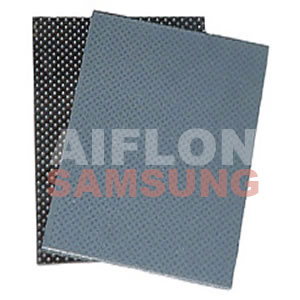

Non-asbestos gasket sheet reinforced with tanged Carbon Steel
Non-asbestos gasket sheet reinforced with tanged Carbon Steel
Item: A.S.SEALS.4120I
Description:
Send Inquiry Now! Live Chat Now!

Specification:
CONSTRUCTION:

Asseals GS4120I is made of 4120 Non-asbestos gasket sheet reinforced with tanged 0.2-0.25mm Carbon Steel. It is extensively applied in manufacturing various motor gaskets. It is a new material that will substitute asbestos products. The product has excellent performance in dilatability, sealing equality and long life etc., Mainly applied in automobile farming machine, motorcycle and engineering etc., it is also can be used in high strength gaskets and cylinder gaskets etc.

Asseals GS3000I is made of 3000 asbestos emulsion sheet reinforced with tanged 0.2-0.25mm Carbon Steel

PROPERTIES & APPLICATION:

Item
Style
GS 4120I, GS 3000I
Density          g/cm3
1.30~1.50
Tensile strength   ¡ÝMpa
12.7
Compressibility ¡Ý%
10¡À5
Recovery      ¡Ý%
40
Sealing performance
<0.5cm3/min
Performance of heat-resistance
150-300¡ãC

Normal colour: Black, Gray, Graphite etc.
Available with SS304. wire mesh insertion
Also available with anti-stick silicon resin---4120IS, 3000IS
or graphite coating---4120IG, 3000IG

FORMS OF SUPPLY:

Sheets

500¡Á1000mm; 500¡Á1200mm; 500¡Á1500mm;
510¡Á1016mm; 510¡Á1530mm;
1000¡Á1000mm ;1000¡Á1500mm;
Thickness:  1.0~2.4mm
Packing:
in strong export standard cases of about 1000 kgs net each
