Lens ring joint gasket

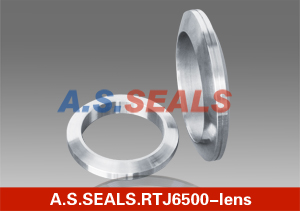

Lens ring joint gasket
Item: A.S.SEALS.RTJ6500-lens
Description: 1.RTJ6500-Lens gasket has a convex shape of ring joint gasket
2.It is widely applied in petroleum processing, oil refining, electricity generated by firepower, textile and other light industries, etc.
3.The pressure is from 16.0Mpa~32.0Mpa.
Send Inquiry Now! Live Chat Now!

Specification:
Standard materials:
Standard materials recommended by the ANSI B 16.20
ASTM DIN Material No. Maximum HB Maximum HV Materials code
Soft Iron 1.1003 90 56 D
Low CS 1.0038 120 68 S
4-6Cr1/2Mo 1.7362 130 72 F5
AISI 410 1.4000 170 86 S 410
AISI 304 1.4301 160 83 S 304
AISI 316 1.4401 160 83 S 316
AISI 347 1.4550 160 83 S347
 Other special materials, Nickel, Monel, C276, etc , please request.

Order Example:
Ring-Joint gasket RTJ6500-lens, BX-**, special sizes requested,please provide the exactly drawings.
