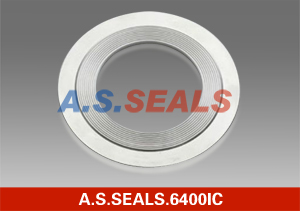

Kammprofile gasket with integral centering ring

Item: A.S.SEALS.6400IC

Description: 1.6400IC Kammprofile gasket is made of solid core, covering by soft materials. Integral cerntering ring ensures optimum gasket positioning.
2.Serrations concentrate bolt load on small area for tight seals at lower stress,under compression, fills seating surface imperfections to form a tight, metal-to-metal connection. Withstands extreme fluctuations in temperatures and pressures.
3.Rigid core provides exceptional stability, even in large sizes, and facititates handing and installation.
4.Economical replacement for jacketed heat exchanger gaskets, seals less than perfect flanges.

Specification:

Selection materials:

Materials for metal and corrugated metal gaskets
Material	ASTM	DIN Material No.
Low CS	Soft Iron	1.1003
Stainless steel	AISI 304	1.4301
Stainless steel	AISI 316	1.4401
Stainless steel	AISI 321	1.4541
Stainless steel	AISI 316Ti	1.4571

Thicknesses:

Core thickness		Compressed thickness
Inches	mm	Inches	mm
0.093	2.36	0.095~0.105	2.41~2.67
0.125	3.18	0.128~0.138	3.25~3.51
0.187	4.75	0.190~0.200	4.83~5.08
0.250	6.35	0.253~0.263	6.43~6.68
0.375	9.53	0.378~0.388	9.60~9.86
0.500	12.70	0.503~0.513	12.78~13.03

Based on a flexible graphite sealing element.
