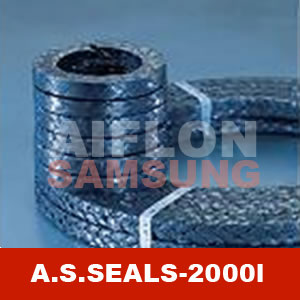

Inconel reinforced Graphite packing (with corrosion inhibitor)

Item: A.S.SEALS.2000I(K)

Description: Braided from low-sulphur expanded graphite yarns, reinforced with Inconel wire. It retains all the inherent benefits of 2000 pure graphite packing, good thermal and chemical resistance, very low friction, the wire reinforcement also provides greater mechanical strength.

Specification:

2000IK-Graphite Packing with Inconel Wire and Corrosion Inhibitor

Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.

Other metal materials, nickel, stainless steel etc. on request.

APPLICATION :

2000I & 2000IK is a multi-service packing capable of a wide variety of uses throughout a plant. It is particularly suited for use in high temperature, high pressure steam service. In addition, it can also handle most chemicals, acids and alkalis. Style 2000I and 2000IK is excellent for use in steam turbines, high temperature motor-actuated valves and for high temperature and high pressure valve applications in general.

Precaution: in oxidizing environment.

Recommendation: May use with Asseals 2102 high carbon fiber anti-extrusion packing rings.

SERVICE LIMITS:

	Valves	Agitators
Pressure	400Bar	50Bar
Shaft speed	2m/s	2m/s
Density	1.1~1.4g/cm³ (+5% for 2000K)
Temperature	-220~+500⁰C(+550⁰C with steam)
PH range	0~14

FORMS OF SUPPLY:

in coils of 2 to 5 kg, other package on request.

as packing rings---R2000I,R2000IK etc.

as precut length
