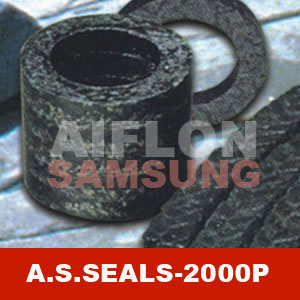

Graphite packing with PTFE impregnation

Item: A.S.SEALS.2000P

Description: Made of expanded flexible graphite , which are reinforced by textile fibers, with PTFE impregnation. Compared to traditional graphite packing , it has excellent cross-section tightness, structural strength and very low friction-value, wear resistant, yet gentle to shaft and stem.

Specification:

APPLICATIONG:

Can be used in many demanding applications, both dynamic and static. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.

SERVICE LIMITS:

Style

2000P

Temperature

+280⁰C

Pressure

Shaft speed

Rotating

25 bar-25m/s

Reciprocating

100 bar-2m/s

Valve

300 bar-2m/s

PH Range

0~14

Density(appr.)

1.3~1.5 g/cm³

FORMS OF SUPPLY:

In coils of 1 to 5 kg, other package on request.

as packing rings--- R2000P

as precut length
