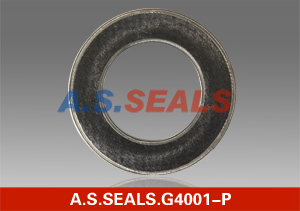

Graphite gasket reinfrced with flat foil

Item: A.S.SEALS.G4001-P

Description: 1.G4001-P Graphite gasket is made of graphite sheet reinforced with flat metal insert, Kinds of reinforced metal: smooth metal, 304(L), 316(L), Nickel,etc. Following the requirement.
2.There are four style eyelets: without eyelet, with inner eyelet, with outer eyelet, with inner and outer eyelets.
3.Compressibility: 15~35%
Recovery: >20%
Pressure: 200bar
Density 1.4g/cm3
Temperature: -240~550 oC
PH: 0~14
4.Various shapes are available, used in petrochemical, mining, vessels, boilers, piping and duct, pumps and values, flange etc. Suitable for steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.

Specification:

Graphite properties:

Item	Tolerance of density	C >%	Tensile strength	Sulphur content	Chlorine content	Stress relaxation	Ignition loss
Industrial	+/-0.06g/cm3	98	4Mpa	<1000ppm	<50ppm	10%	2.0<%
Nuclear	+/-0.05g/cm3	99.5	5Mpa	<700ppm	<35ppm	10%	0.5<%
