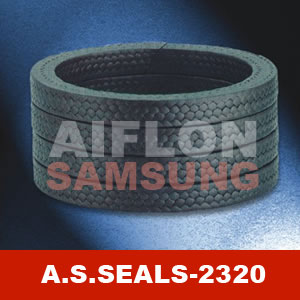

Graphite PTFE packing
Graphite PTFE packing
Item: A.S.SEALS.2320
Description:
Send Inquiry Now! Live Chat Now!

Specification:

Graphited PTFE Asseals 2320A or B Graphifed PTFE (GPTFE)yarn.The packing is soft.There are no free particles of graphite on surface and therefore no contamination can occur. Asseals2320L Graphifed PTFE Packing with oil Packing made of 100£¥ GPTFE yarns,and re-impregnated with a silicone lubricant. Application:Used in pums,valvis,mixers and agitators.Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings.Can be safely used un alkl chemical pump applications with the exception of molten alkali metals,fluoride,fuming nitric acid and other strong oxidizing agents.

Service Limits

T 280¡æ
PH 0-14
V 12m/s
Rotating 15bar
Reciprocating 100bar
Valve 150bar
D(g/cm³)

1.4-1.6

Forms of supply£º
2-5Kg/roll
Packing Ring£ºR2320
