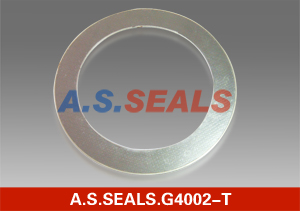

Graphite Gasket reinfoced with tanged metal
Graphite Gasket reinfoced with tanged metal
Item: A.S.SEALS.G4002-T
Description: 1.G4002-T Graphite gasket is made of graphite sheet reinforced with tanged metal insert, Kinds of reinforced metal: tanged metal, 304(L), 316(L), Nickel,etc. Following the requirement.
2.There are four style eyelets: without eyelet, with inner eyelet, with outer eyelet, with inner and outer eyelets.
3.Compressibility: 15~35%
Recovery: >20%
Pressure: 300bar
Density 2.0g/cm3
Temperature: -240~550 oC
PH: 0~14
4.Various shapes are available, used in petrochemical, mining, vessels, boilers, piping and duct, pumps and values, flange etc. Suitable for steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.
Send Inquiry Now! Live Chat Now!

Specification:
Graphite properties:
 Item  Tolerance of density  C >% Tensile strength  Sulphur content  Chlorine content  Stress relaxation  Ignition loss
 Industrial  +/-0.06g/cm3  98  4Mpa  <1000ppm  <50ppm  10%  2.0<%
 Nuclear  +/-0.05g/cm3  99.5  5Mpa  <700ppm  <35ppm  10%  0.5<%
