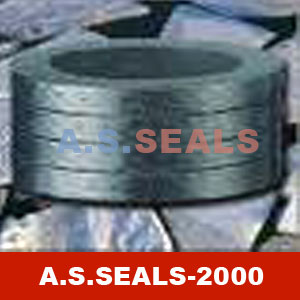

Expanded graphite packing (with corrosion inhibitor)
Expanded graphite packing (with corrosion inhibitor)
Item: A.S.SEALS.2000(K)
Description: Braided from low-sulphur expanded graphite yarns, which are reinforced by cotton fiber. It has a very low friction, does not damage shafts or stems. It shows good thermal and chemical resistance and high elasticity.
Send Inquiry Now! Live Chat Now!

Specification:
2000K--Flexible Packing with Corrosion Inhibitor
Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.
Other reinforcement materials are also available.
Glass fiber--------High strength, lower cost
Carbon fiber------Less weight loss

APPLICATION :
2000 & 2000K is a multi-service packing capable of a wide variety of uses throughout a plant. It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure, high-temperature hostile environments of hydrocarbon processing, pulp and paper, power stations, refineries and industries where effective sealing is vital.
Precaution: in oxidizing environment.
Recommendation: Use preferably with Asseals 2102 high carbon fiber anti-extrusion packing rings.

SERVICE LIMITS:

Rotating
Reciprocating
Valves
Pressure
20 Bar
100Bar
300Bar-
Shaft speed
20m/s
2m/s
2m/s
Density
1.0~1.3g/cm3 (+5% for 2000K)
Temperature
-220~+5000C(+5500C with steam)
PH range
0~14

FORMS OF SUPPLY:
in coils of 2 to 5 kg, other package on request.
as packing rings---R2000,R2000K etc.
as precut length
