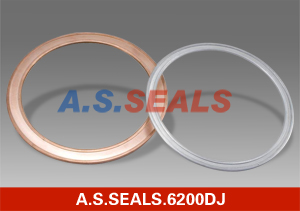

Double Jacketed gaskets
Double Jacketed gaskets
Item: A.S.SEALS.6200DJ
Description: 1.Metal clad gasket is composite gasket with internal nonmetal materials, such as flexible graphite, PTFE, Asb, Non-asb, Ceramic fiber which is clad by special metal sheet in cold work.
2.Normally used as flange sealing in large diameter pressure vessels, such as heat exchanger and reactor. Prefect stability.
3.Scope of application: working temp.: 450℃ (According to the kinds of coating materials); working pressure: 6.4 Mpa; gasket coefficient: 3.75; Max. size:2800mm.
4.The thickness of the jacketed metal is 0.4mm (Normally)
Send Inquiry Now! Live Chat Now!

Specification:
Selectable Materials:
 Metal materials  Din Material No.  Hardness HB Temperature oC  Density g/cm3
 CS/Soft Iron  1.1003/1.0038  90~120  -60~+500  7.85
 SS304, SS304L  1.4301/1.4306  130~180  -250~+550  7.93
 SS316, SS316L  1.4401/1.4404  130~180  -250~+550  7.98
 Copper  2.0090  50~80  -250~+400  8.9
 Aluminum  3.0255  20~30  -250~+300  2.73
Other special metal, Ti, Monel,etc. Are also available on request
Applicable Standard:
EN1514-4, ANSI B 16.21, ANSI B 16.5 standards, special size please request and provide drawing.

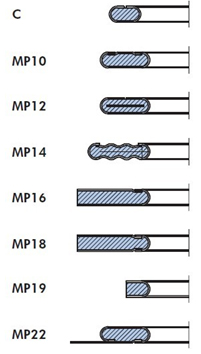

Style of jacketed:
