Corrugated Gasket
Corrugated Gasket

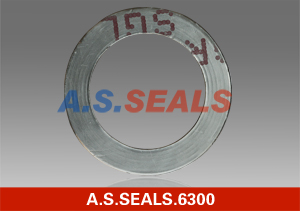

Item: A.S.SEALS.6300
Description: 1.Corrugated gaskets is made of corrugated metal covered with graphite, ceramic, PTFE layers. And additional finishing layer is applied depending on the requirements of the medium to be sealed.
2.There are different types of metal gaskets, like flat, groove, tongue and sectional ones. They are used where compressibility of sealing materials is not require. The construction of such gaskets based on the principle of different hardness of adjacent materials. These gaskets come in various shapes and there are almost limits concerning their size.
3.The diameter 1000mm is usually made in one piece, larger dimensions are welded. Welding is also recommended for cost-effectiveness.
Send Inquiry Now! Live Chat Now!

Specification:
Selection materials:
 Materials for metal and corrugated metal gaskets
 Material  ASTM  DIN Material No.
 Low CS  Soft Iron  1.1003
 Stainless steel  AISI 304  1.4301
 Stainless steel  AISI 316  1.4401
 Stainless steel  AISI 321  1.4541
 Stainless steel  AISI 316Ti  1.4571
