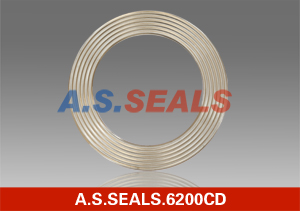

Corrugated Double Jacketed gasket

Item: A.S.SEALS.6200CD

Description: 1.Corrugated double jacketed gasket is made of machined flat metallic plate with waved or corrugated surface.After finished jacketed, pressure by molds make the surface flat to corrugated.attached with flexible graphite, PTFE, Ceramic, ASB, Non-asb. etc.
2.Normally used as flange sealing in large diameter pressure vessels, such as heat exchanger and reactor. Prefect stability.
3.Scope of application: working temp.: 450�� (According to the kinds of coating materials); working pressure: 6.4 Mpa; gasket coefficient: 3.75; Max. size:2800mm.
4.The thickness of the jacketed metal is 0.4mm (Normally)

Specification:

Selectable Materials:

Metal materials	Din Material No.	Hardness HB	Temperature ^oC	Density g/cm³
CS/Soft Iron	1.1003/1.0038	90~120	-60~+500	7.85
SS304, SS304L	1.4301/1.4306	130~180	-250~+550	7.93
SS316, SS316L	1.4401/1.4404	130~180	-250~+550	7.98
Copper	2.0090	50~80	-250~+400	8.9
Aluminum	3.0255	20~30	-250~+300	2.73

Other special metal, Ti, Monel,etc. Are also available on request
Applicable Standard:
EN1514-4, ANSI B 16.21, ANSI B 16.5 standards, special size please request and provide drawing.
