Braided expanded graphite tube
Braided expanded graphite tube
Item: A.S.SEALS.7004
Description:
Send Inquiry Now! Live Chat Now!

Specification:
Description:

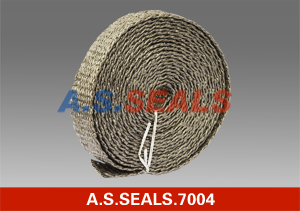

Style 7004 is a braided strip, made of expanded flexible graphite fibers.
Style 7004S with a self adhesive film on one side.
Style 7004I reinforced with inconel wire.

Application:
To be used as a endless gasket strip for vessels and flanges of extreme uneveness, high temperature and high pressure. For heat exchangers , boilers, pipes, doors, covers, etc. Easy handing and installation to every size, also used as a universal gasket during revisions, etc.

Form of supply:
Bulk materials : 2kgs/box
Sizes: 12.7*3.2mm, 25.4*6.4mm, 31.8*6.4mm, 38*6.4mm

Operating Limits:
Temperature: 200~550oC
I environment up to 3000oC
Chemical resistance: PH 0~14
Max. Pressure: 100 bar~200bars
