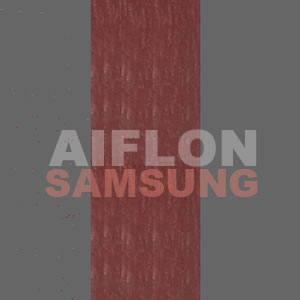

Asbestos rubber sheet with coating graphite both sides
Asbestos rubber sheet with coating graphite both sides
Item: A.S.SEALS.3050
Description:
Send Inquiry Now! Live Chat Now!

Specification:
CONSTRUCTION
Asseals CAF3050 is made from selected asbestos fibre, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.
Asseals 3050G is CAF 3050 with both graphite coating
Asseals 3050IG is CAF 3050 reinforced by wire mesh with both graphite coating

PROPERTIES & APPLICATION:

Item
Style
3050
3050G
3050IG
Tensile strength¡ÝMpa
19
19
25
Aging
coefficient
0.9
0.9
0.9
Loss on ignition
¡Ü%
28
28
28
Compressibility
¡Ý%
12¡À5
12¡À5
12¡À5
Recovery
¡Ý%
45
45
45
Density g/cm3
1.8~2.0
1.8~2.0
2.0~2.2
Tmax:  ¡æ
500
550
550
Pmax:  Mpa
12.0
12.0
20
Normal color
Purple red
Graphite
Graphite
Resistance
to media
Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure.

Available colour: Purple, Black, grey, etc.
Also available with anti-stick£º3050S£¬3050GS£¬3050IGS


FORMS OF SUPPLY:
Sheets£ºThickness:  0.4~6mm
12000¡Á1500mm; 2000¡Á4000mm;
1500¡Á1500mm;  1500¡Á1000mm;
1270¡Á1270mm; 3810¡Á1270mm

Cut gaskets£º

CAF G3050, G3045G, G3045IG
Dimensions according to drawings or specifications and standards
