Asbesto gaskets
Asbesto gaskets

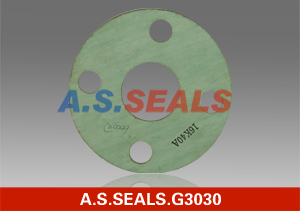

Item: A.S.SEALS.G3030
Description: 1. A.S.Seals Asbestos gaskets are die cut or circle cut from compressed asbestos jointing which are manufactured carefully selected chrysolite fiber intimately blended with suitable heat resistant binders etc. And volcanised into sheets of homogenous compositions and uniform thickness
2. Asbestos gasket seal is effected by yielding or flow of materials into the imperfections of joint contact faces.
3. In this way gasket provides an unbroken barrier of homogenous structure through which no pathway exist for excape of confined media
4. Asbestos made of high quality's long asbestos fiber, rubber and heat-resisting packing materials, compressing it to thick sheets.
Send Inquiry Now! Live Chat Now!

Specification:
Properties & Application:

Item

Style

G3030

G3035

G3040

G3045

Tensile strength Mpa

9

12

15

19

Aging coefficient

0.9

0.9

0.9

0.9

Loss on ignition %

30

30

28

28

Compressibility %

12+/-5

12+/-5

12+/-5

12+/-5

Recovery

40

40

45

45

Density g/cm3

1.6~2.0

T.Max oC

300

350

400

450

P.Max. Mpa

3.0

4.0

5.0

6.0

Resistance to media

Water, seawater, steam, diluted acid & alkali, gases, alcohole, salt solutions etc. Under temperature and pressure.


Above pressure and temperature only for your reference, more specifications, please see out data sheets or contact with our engineers.
Other style asbestos gaskets:
1.Acid-resisting asbestos gasket, style: G3220,3225,3230
2.Oil resisting asbestos gasket, style: G3115,3130,3135,3145
Dimension:
ASME B 16.21, DIN2690, And any sizes or special shapes according to your requirements.
Order example:
G3030, ASME B 16.21, RF, 2.0mm
Note: FF flange gaskets normal with holes. Please provide the diameter and quantity of holes.
